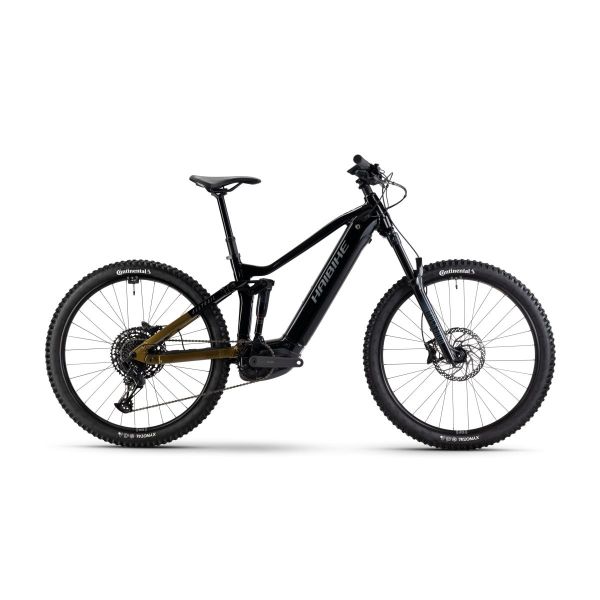

The ALLTRAIL 10 is equipped with the best of the best and lets you ride trails at the highest level. For the new season, we have completely redesigned our high-performance eFully, starting with a new, more agile frame platform and ending with the current Bosch Performance CX motor. Powerful: With its 800 Wh battery and the Range Extender option, your touring radius is larger than ever. The Sram derailleur, powerful Shimano 4-piston disc brakes and high-end RockShox shock absorbers with 140 mm travel at the front and rear leave nothing to be desired, even on the most demanding trails. Available with 29" or 27.5" wheels (size S). Yes, this bike is the perfect partner – even for particularly wild and untamed bike adventures.

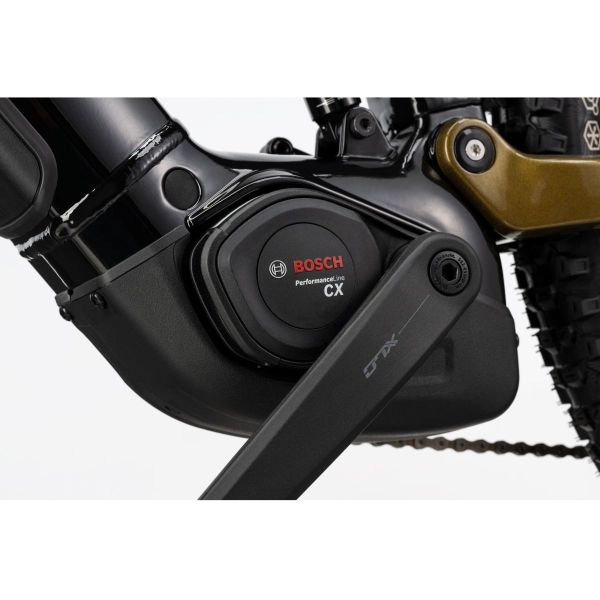

Engine: Bosch Performance CX GEN5, 250W, 85Nm, 25km/h
Display: Bosch Kiox 300 + Led remote
Battery: Bosch Powertube 800Wh
Charger: Bosch 4A fast charger
Frame: 6061 aluminum
Fork: Rock Shox 35 140mm
Shock: RockShox Deluxe Select, air

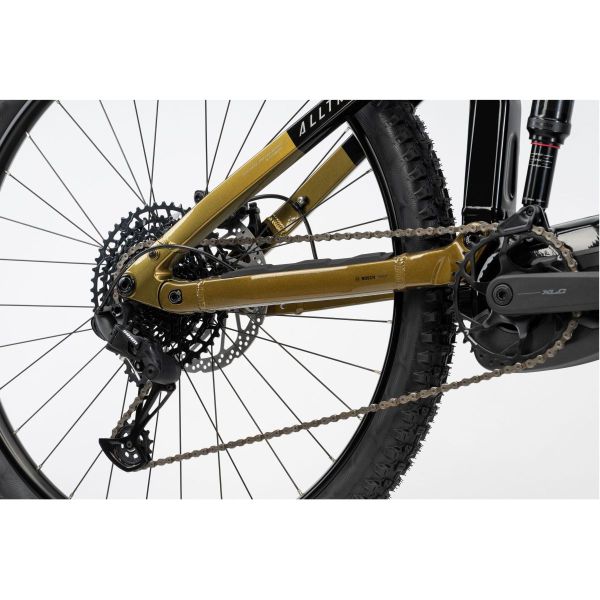

Rear derailleur: SRAM SX 12v
Levers: SRAM SX 12v
Cassette: SRAM PG 1210 11-50
Chain: SRAM SX 12v
Chainring: 38 teeth
Chain guide: Nylon directmount
Brake lever: Shimano MT401
Front brake: Shimano MT420, 203mm
Rear brake: Shimano MT420, 203mm
Front tire: Continental Xynotal
Rear tire: Continental Xynotal
Front rim: WTB
Rear rim: WTB
Handlebar: Haibike Components TheBar ++ 780mm
Grips: Haibike MTB grips
Stem: Alu, A-head, Bar bore: 31.8mm
Headset / A-Head Tapered
Saddle: XLC MTB
Seatpost: telescopic
Pedals: Freeride pedal aluminum
Total weight allowed: 150kg
Warranty: 2 years manufacturer
